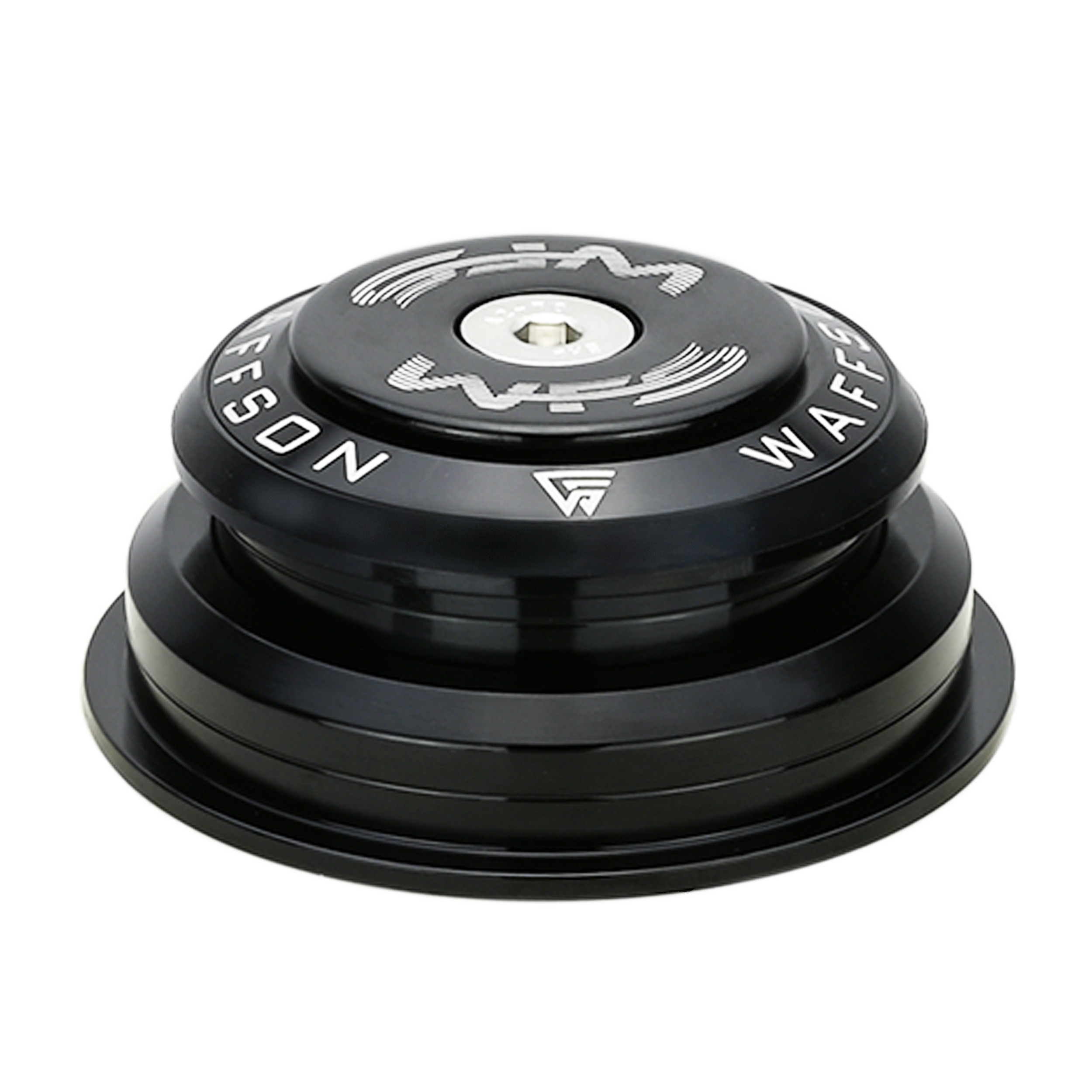

HY713 1-1/8"-1-1/2"
Model：HS05ZQ
- For 1-1/8" Upper, 1.5" Bottom Steerer
- COLOR: Gloss Black / Silver
- COLOR: Gloss Black / Silver
Color
Gloss Black
Size
1-1/8"
Why You Want It
Upgrade your cycling experience with the WFS top-quality headset, precision-engineered for durability, performance, and style. Whether you're tackling rugged mountain trails or speeding down smooth roads, this headset offers
Product Specifications
| SUITABLE FOR: | 1-1/8" Upper, 1.5" Bottom Steerer |
| HEAD TUBE COMPATIBILITY: | Different Outer Diameter Head Tube |
| MATERIALS: | - Top Cover: 6061/T6 CNC Machined with Seals - Upper Cup: 6061/T6 Forged and CNC Machined - Lower Cup: 6061/T6 Cold-Forged and CNC Machined - Crown Race: Steel CNC Machined (Inner Diameter 39.8mm) |
| BEARINGS: | - Upper: Angular Contact Sealed Bearing - Lower: Super Oversize Angular Contact Sealed Bearing |
| SIZE: | 1.5" Head Tube Reduced to 1-1/8" Fork Tube Semi-Integrated Threadless Headset |
| DIMENSIONS: | 1-1/8"×44/50×56/62×39.8 |
| STACK HEIGHT: | 6.5 + 3 = 9.5mm ± 1mm |
| BEARING MODEL: | NHB-5D & NHB-15 |
| WEIGHT: | 119g (including Alloy Top Cap) |
| COLOR: | Gloss Black / Silver |
| CONTENTS: | 1 Set (including Top Cap and Star Nut) |
| COUNTRY OF ORIGIN: | Taiwan |
